Additional Comparisons

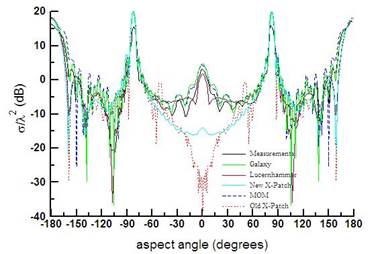

     RCS of a 24o metal cone, normalized
  diameter is 1.33, normalized length is 3.13

    Slide7

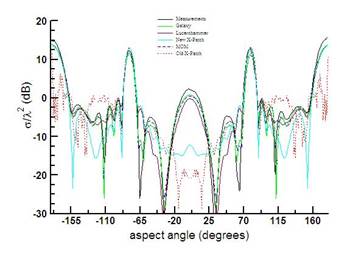

RCS of a 15o metal cone ,normalized diameter
       is 1.69, normalized length is 6.42

Slide6

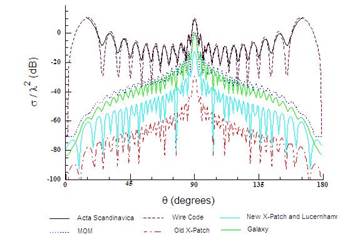

RCS of a thin metal wire, normalized length is
      11.1, normalized radius is 16,700

   Slide4

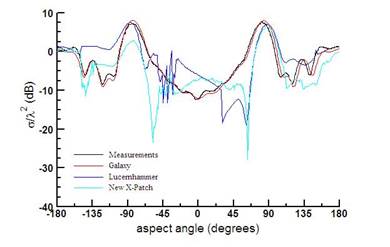

Bistatic RCS of a 8o metal cone, normalized diameter is 1.69, normalized length is 6.42
              bistatic angle 120 degrees
Slide8

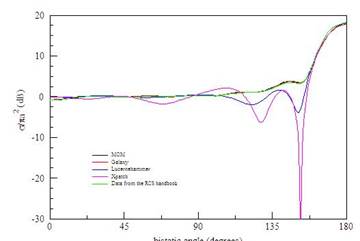

        Bistatic RCS of a metal sphere,

         Normalized circumference is7.7

Slide2












A large number of comparisons were made between the Physical Optics codes, MoM, theoretical solutions and measured values. This is just a small sample.
