Scaled Static Range Development

Static Range Radar built by Anacapa Associates

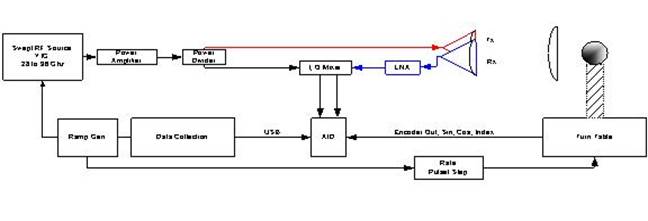

Schematic Diagram

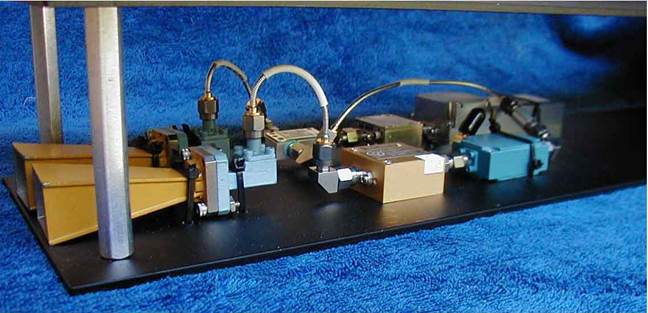

Final Radar

Anacapa Associates and Anacapa North have designed and developed a wide band 35 GHz radar with an 8 GHz bandwidth for use on a static range designed for scaled measurements.

The actual radar was built by DIR Sensors of Goleta, CA.

The static range was built at the Aerophysics Research Center of the University of Alabama, Huntsville, located at the Redstone Arsenal, AL.
